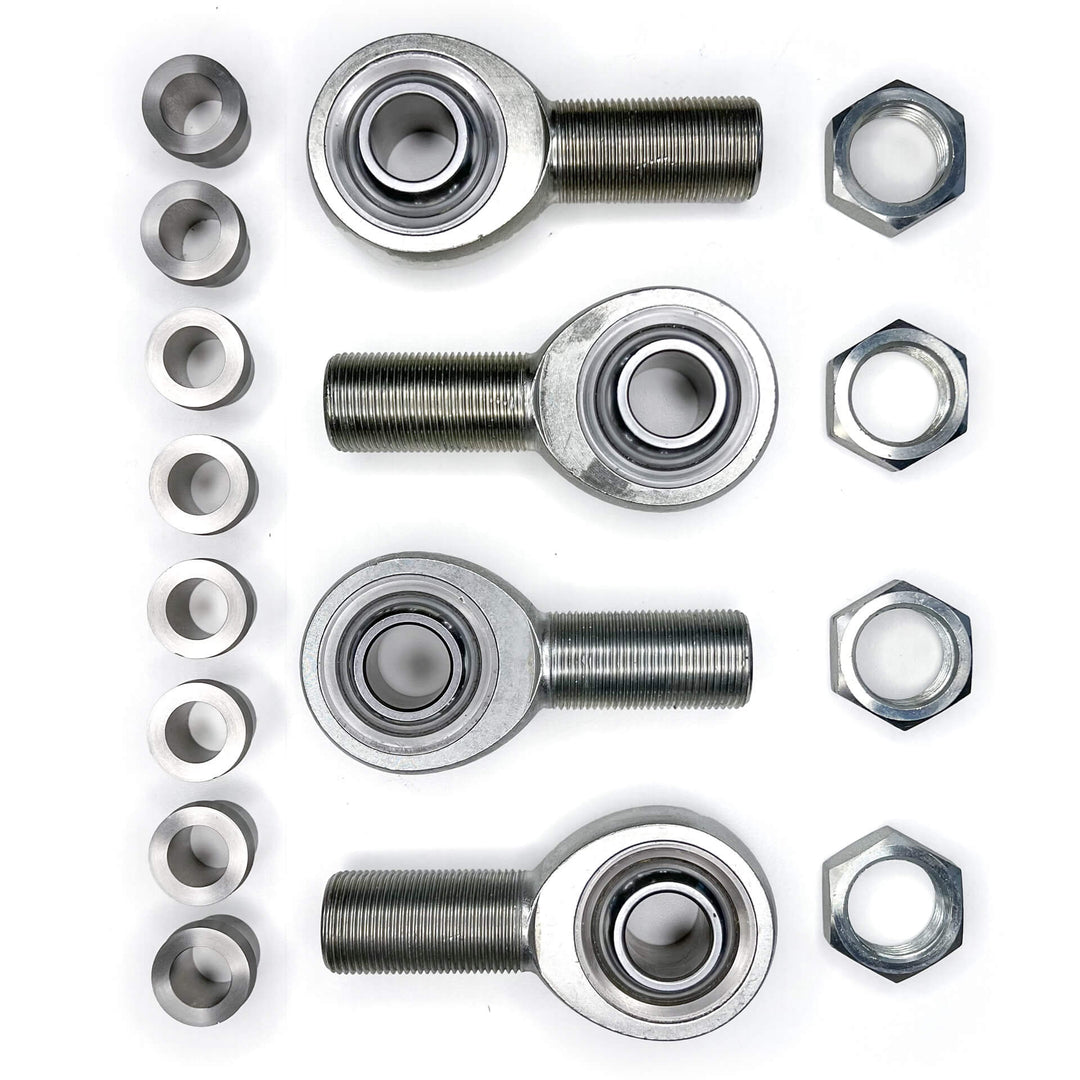

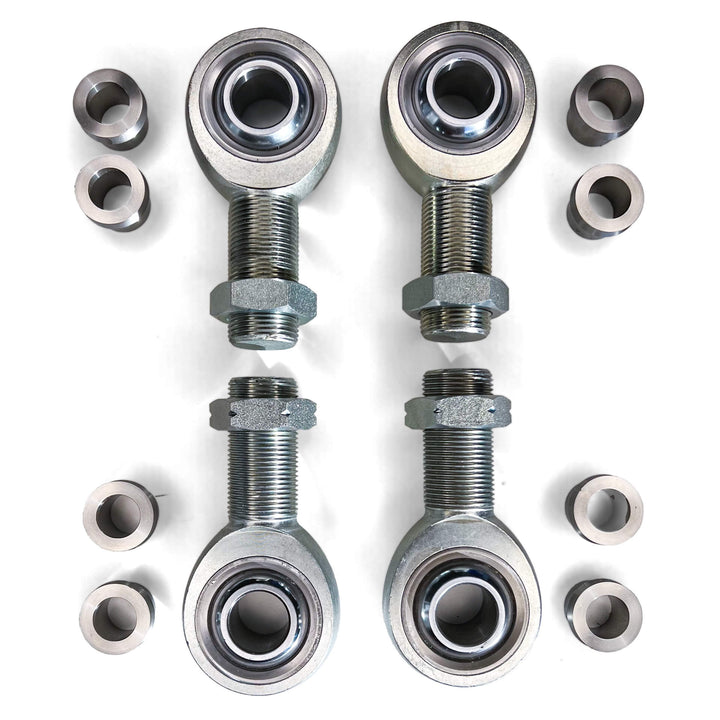

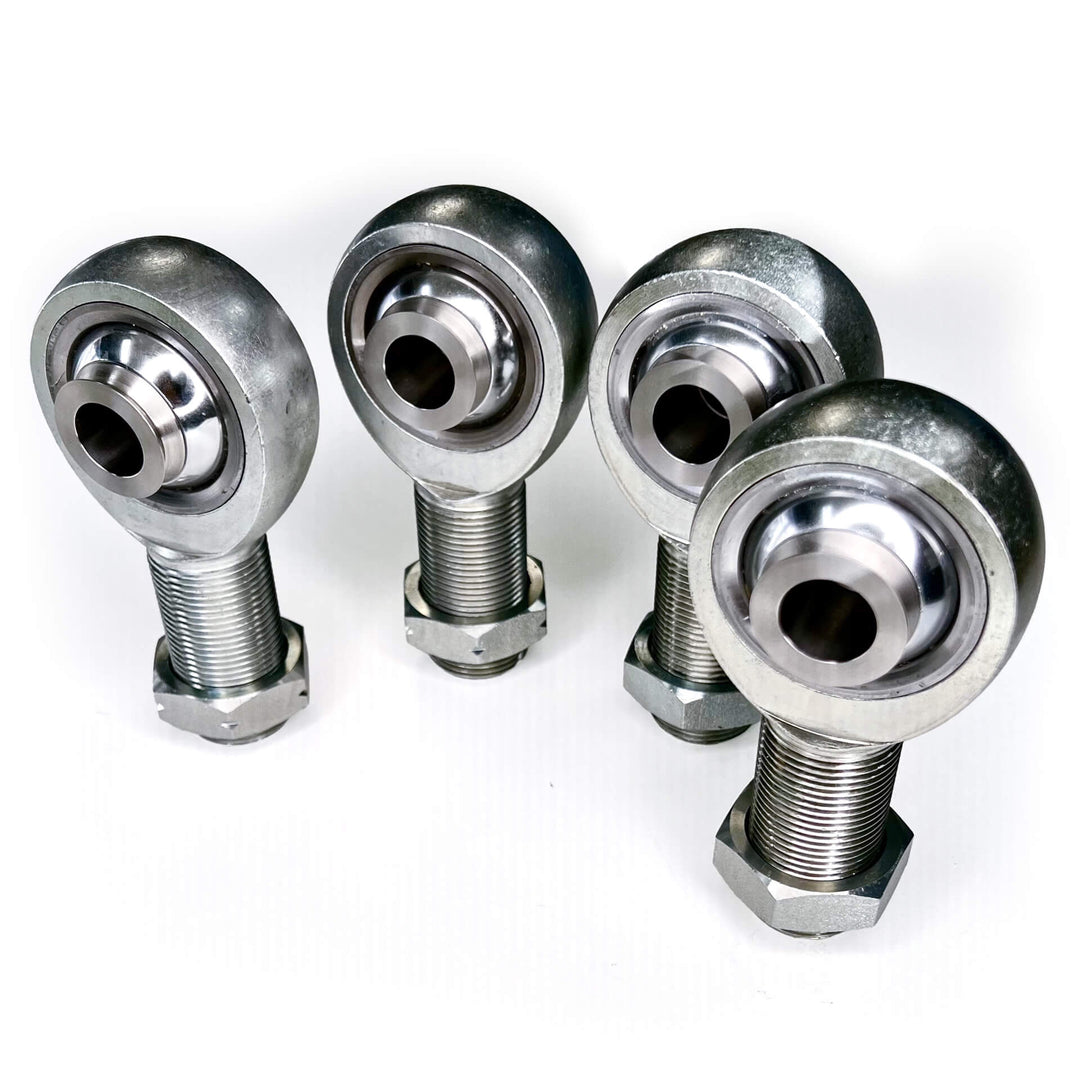

4-pack 1-1/4" x 1" Rod Ends with Jam Nuts & Misalignments
4-pack 1-1/4" x 1" Rod Ends with Jam Nuts & Misalignments
4-pack 1-1/4" x 1" Rod Ends with Jam Nuts & Misalignments

4-pack 1-1/4" x 1" Rod Ends with Jam Nuts & Misalignments

Regular price$329.99
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

Save with our 4-pack of 1-1/4" x 1" Rod Ends and Jam Nuts with 8 Misalignment Spacers for your link project. Choose the thread directions you want for your four-pack, then select the correct misalignment spacer for your project. If you don't see the misalignment spacer you need, email us at sales@hd.enterprises.


  • 4x Rod Ends
  • 4x Jam Nuts
  • 8x Misalignment Spacers

We machine our misalignments in-house from stainless steel. The mounting width is the opening the assembled joint with misalignment spacers would fit into.

Rod End Specifications:
High-quality 3-piece precision rod end/heim joint

  • The body is made from heat-treated chromoly with silver zinc plating
  • Race is made from heat-treated alloy steel that is PTFE-lined
  • The ball is 52100 bearing steel, heat-treated, and hard chrome-plated

Shank Thread UNF: 1 1/4-12
Bearing Bore Diameter: 1"
Thread Length: 2.125"
Center to Shank End Length: 4.125"
Head Diameter: 2.75"
Bearing Width: 1.375"
