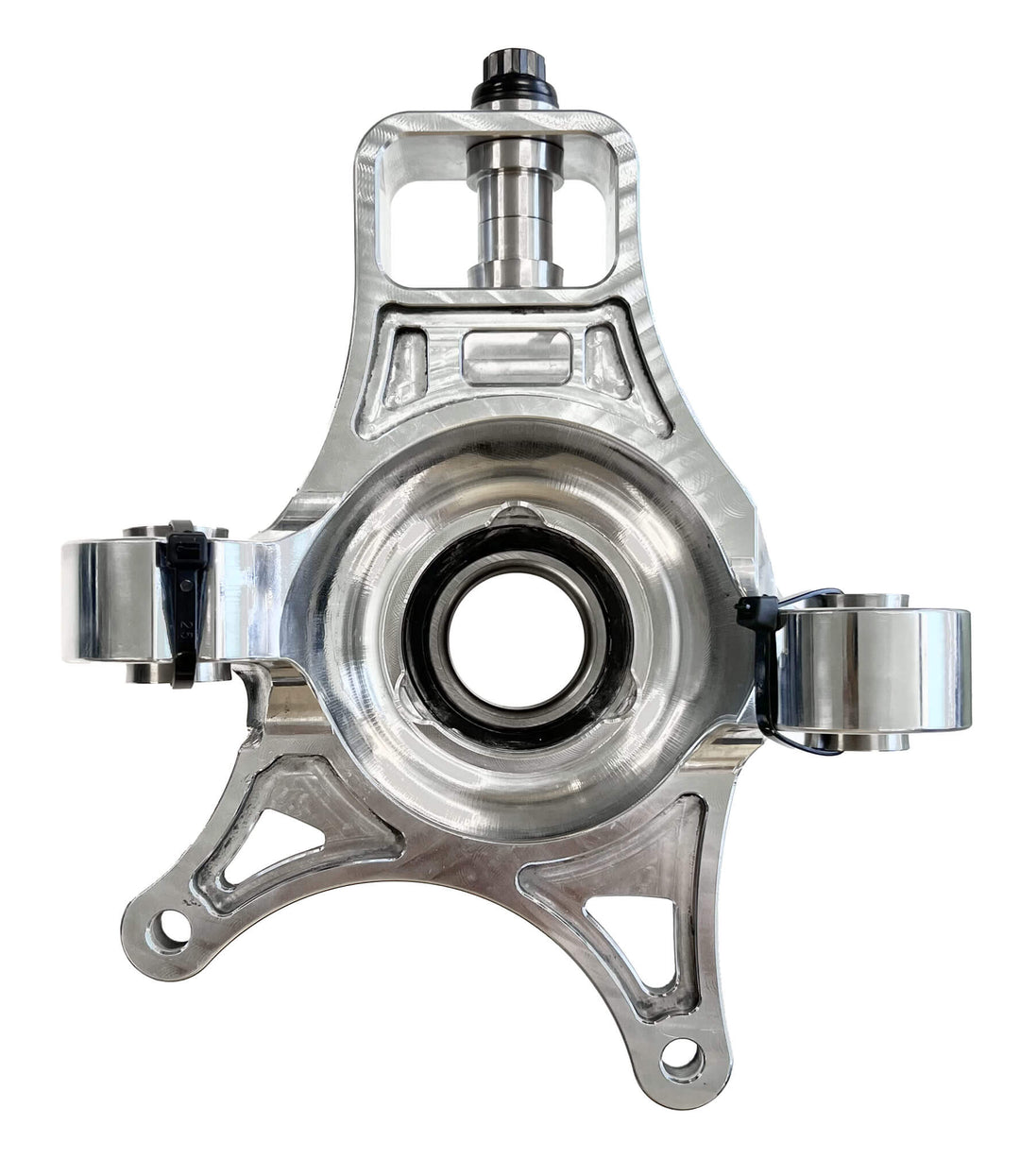

HDE Can-Am X3 RACE Billet Rear Knuckles (Pair) Capped & Double Shear
The only rear knuckle on the market that can run oversized OR oem-sized bearings.

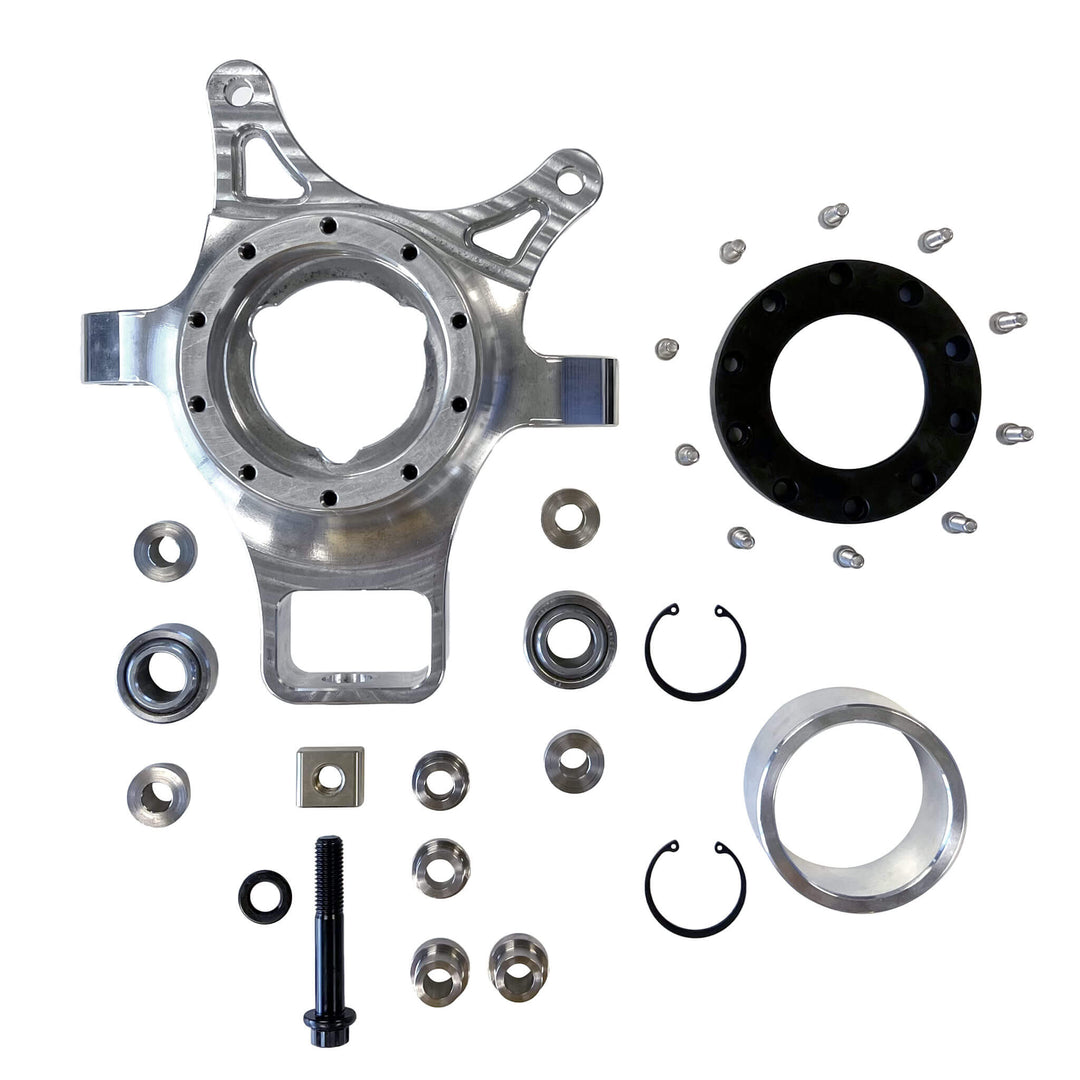

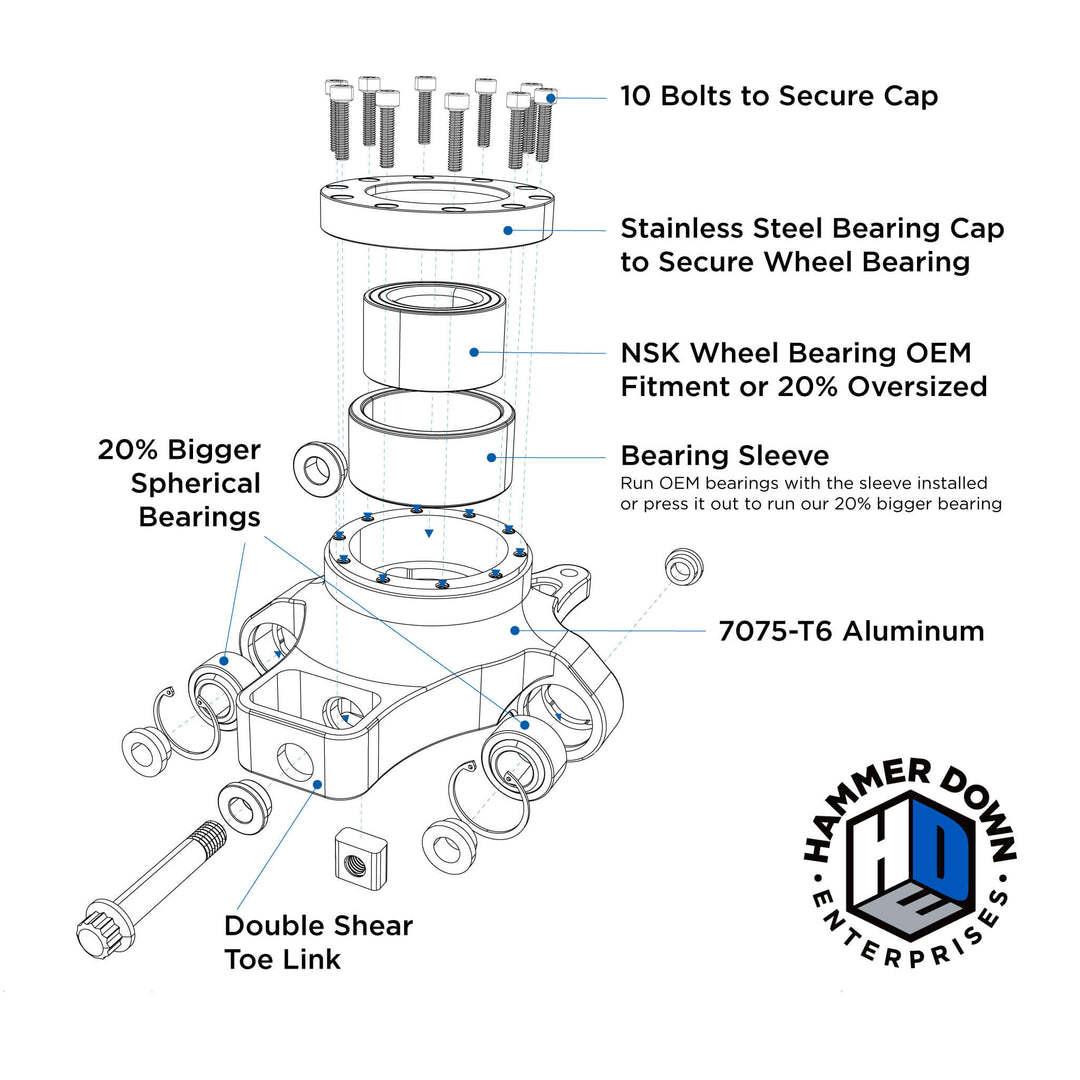

This is a direct bolt-on replacement Billet Can-Am X3 Rear Knuckle kit with a double shear toe link and a capped wheel bearing.
Hammer Down Ent. Machined 7075 T-6 Aluminum Knuckles. These knuckles fix the issues with the Toe link and small pivot bearings.

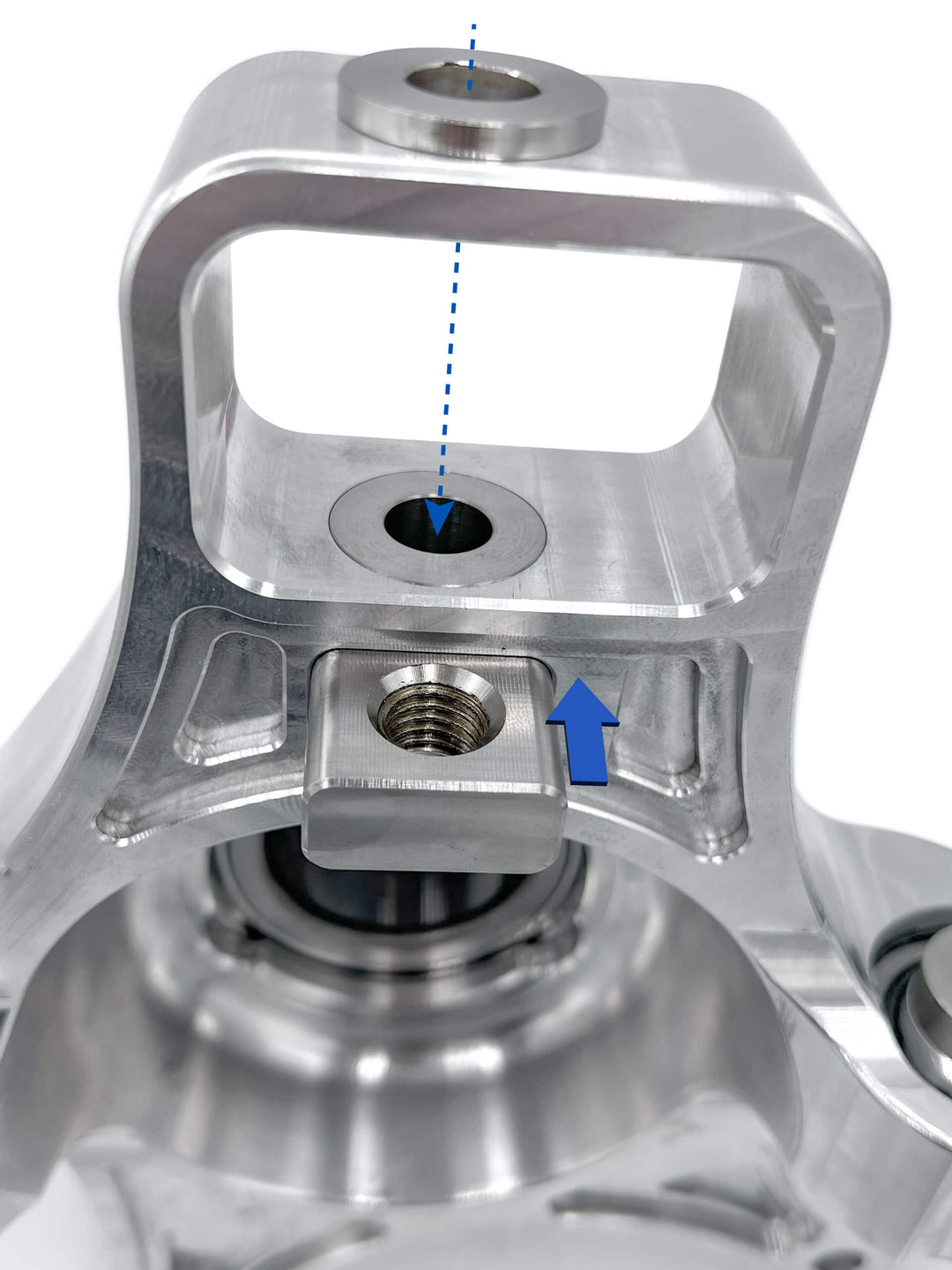

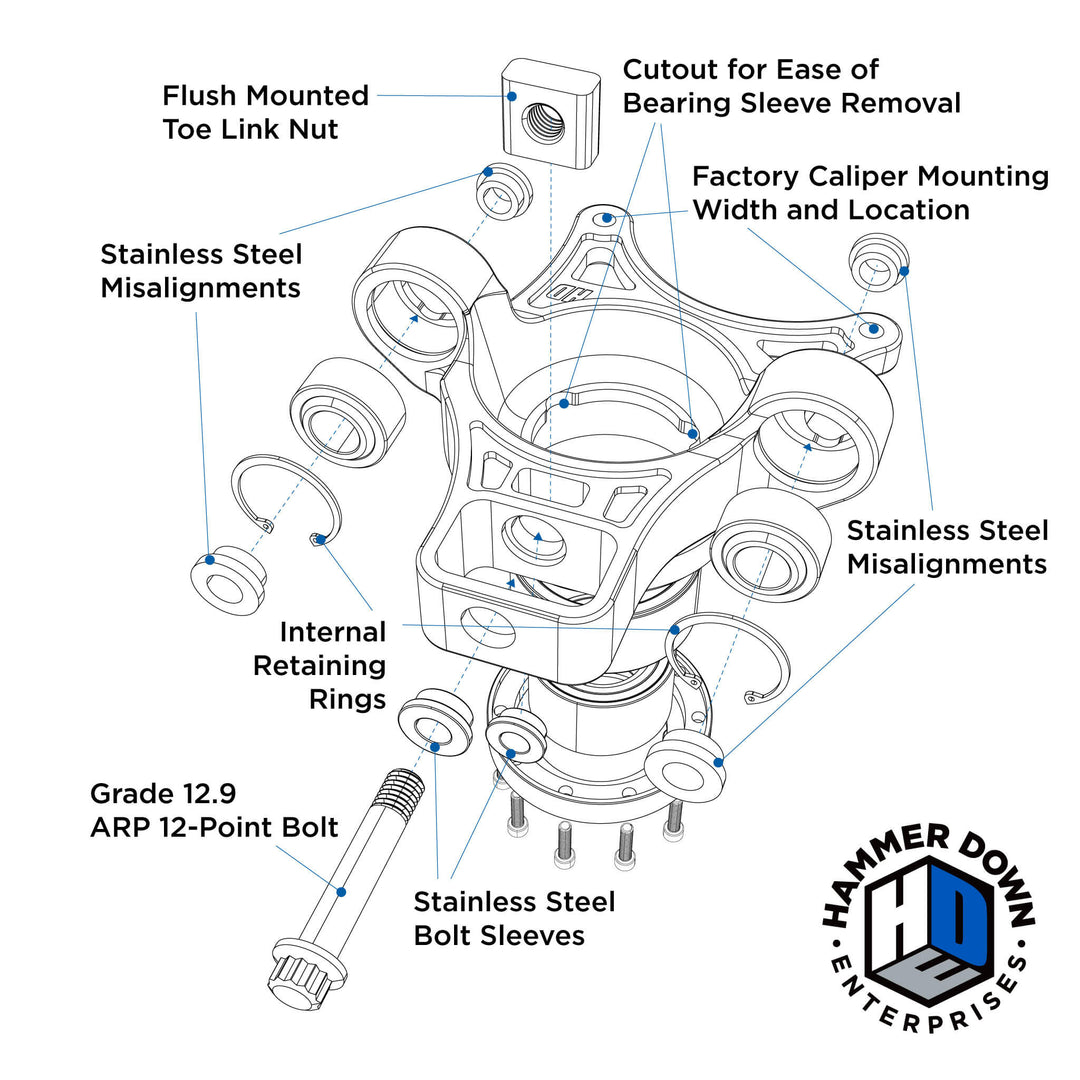

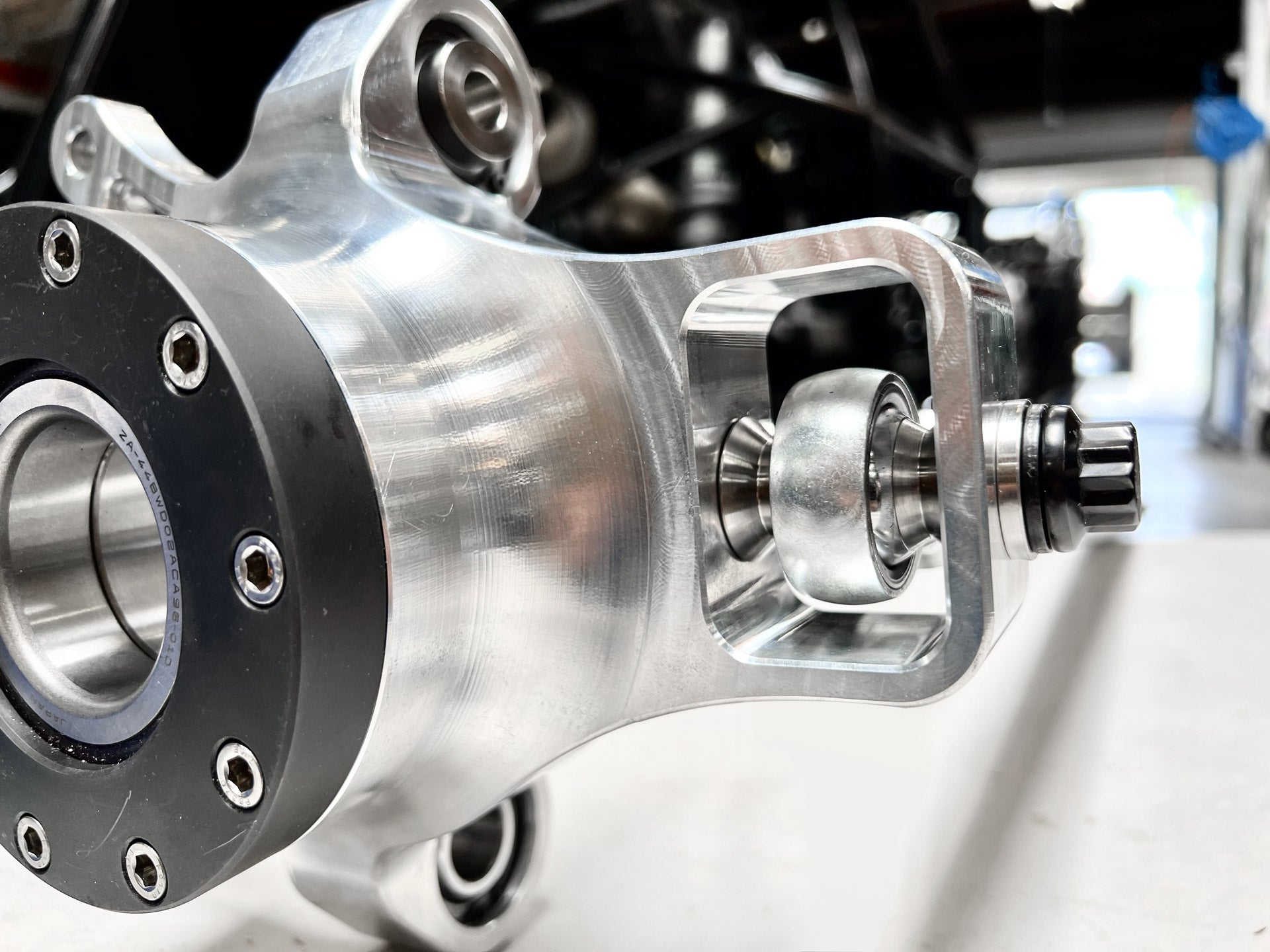

- Adds a true double shear to the toe link that is lined with Stainless Steel inserts to avoid wearing on the aluminum. A flush-mounted nut is also added for increased strength and wear.

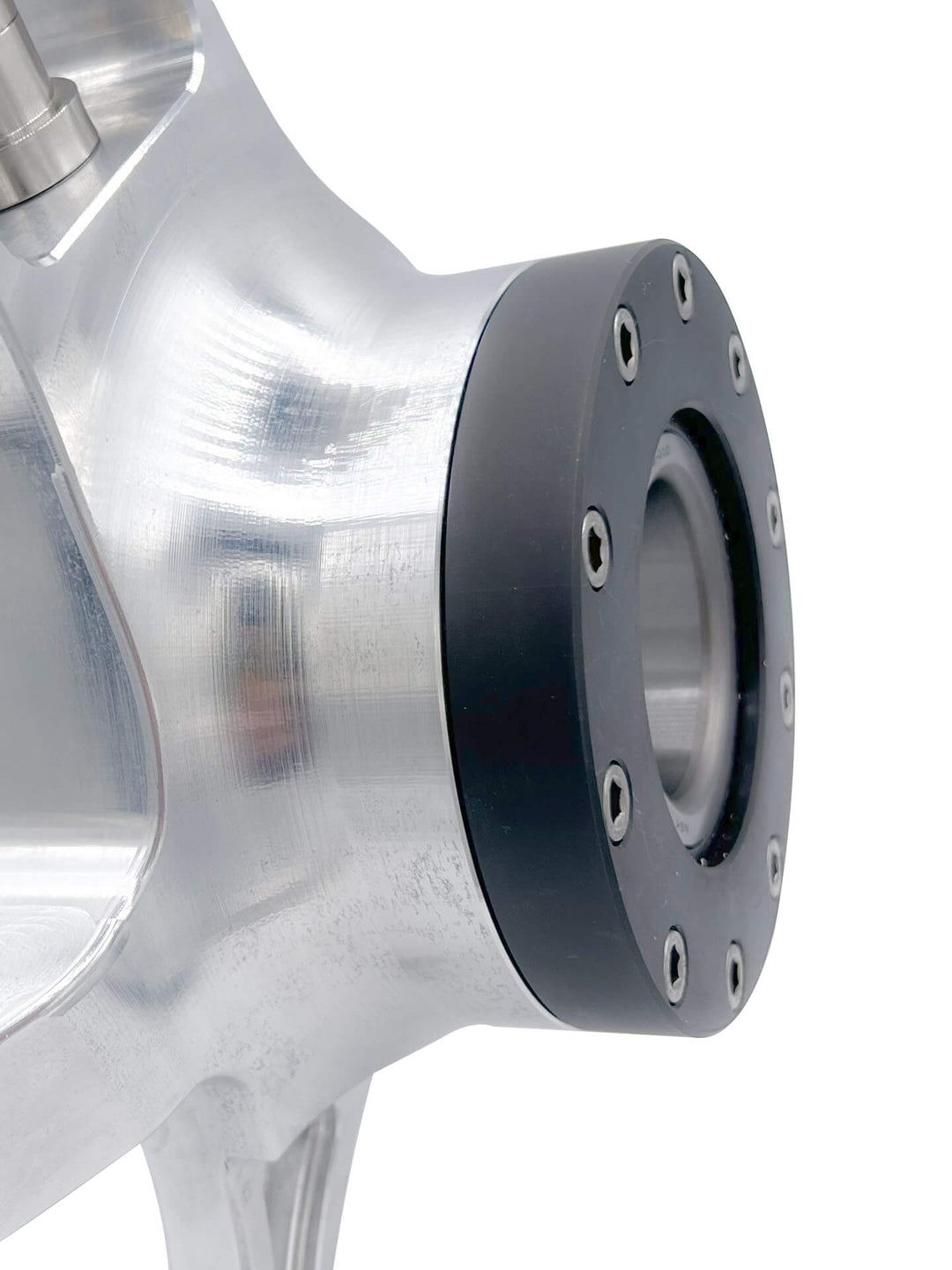

- Eliminated the bearing spiral clip with a SS bearing cap.

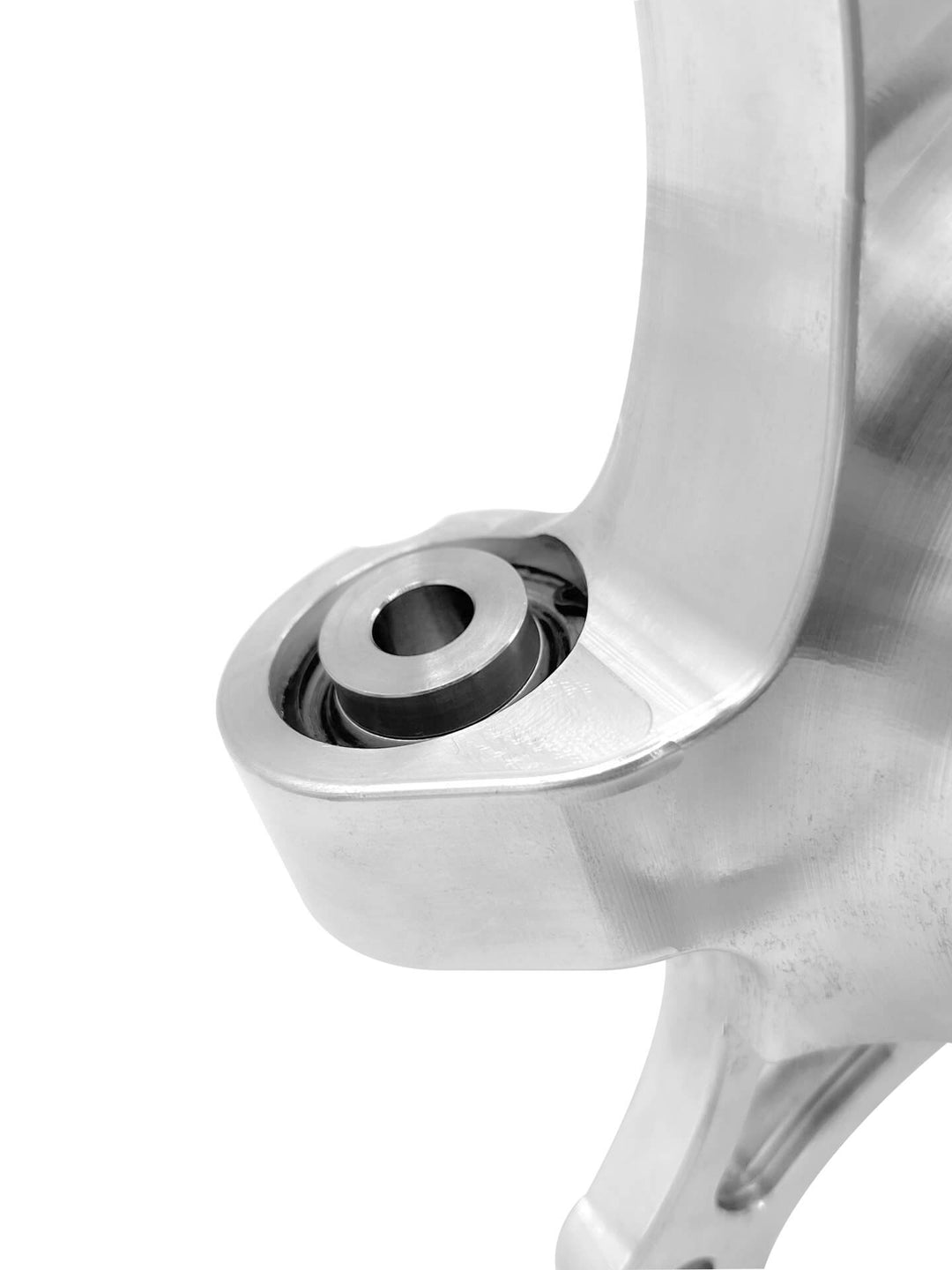

- Increased the size of the pivot spherical bearings and wall thickness
Pick your version: Not Sure? You can start with the stock bearing kit knuckles and upgrade anytime in the future by simply pressing out the sleeve and ordering our big bearing. It’s that simple…..
Stock Bearing Kit: This will include an aluminum sleeve along with the stock sized bearing. No additional equipment needed.
Big Bearing Kit: This will include a much larger bearing with a larger ID hole to accommodate a thicker snout on the hub. You MUST run our thick snout hub (race hub) with this big bearing kit. Check out our race hub for more info and benefits of the larger bearing.
Product Features:
- Manufactured in the USA out of USA 7075-T6 aircraft aluminum
- Direct bolt-in replacement
- Capped spindle with Stainless Steel Cap makes it more serviceable and eliminates the spiral ring
- Increased spherical bearings
- Comes in a set of (2) spindles. (Left & Right)
- Fits 2017+ Maverick X3 (all models)
Made in the USA
Note: NOT compatible with Zbroz or SuperATV Trailing Arms. Due to the larger spherical bearings we use on the top and bottom you may need to trim your trailing arms to fit. If you have any questions or concerns about fitment please contact us before ordering.
